This product listing is for the part LT1679CS#TRPBF, manufactured by Analog Devices, and is a Dual/Quad Low Noise, Rail-to-Rail, Precision Op Amps.

This product is currently out of stock.

Returns are accepted within 30 days if the item(s) received are not what was ordered or are broken.

Part Specifications:
- Common Mode Rejection Ratio: 98 dB
- Dual Supply Voltage: 15 V
- Gain Bandwidth Product: 20 MHz
- Input Bias Current: 2 nA
- Input Offset Voltage (Vos): 100 µV
- Lead Free: Lead Free
- Lifecycle Status: Production
- Manufacturer Lifecycle Status: PRODUCTION
- Max Dual Supply Voltage: 18 V
- Max Operating Temperature: 85 °C
- Max Supply Voltage: 36 V
- Min Dual Supply Voltage: 1.35 V
- Min Operating Temperature: -40 °C
- Min Supply Voltage: 3 V
- Nominal Gain Bandwidth Product: 20 MHz
- Number of Channels: 4
- Number of Circuits: 4
- Number of Elements: 4
- Number of Pins: 14
- Operating Supply Current: 2.5 mA
- Output Current per Channel: 35 mA
- Power Supply Rejection Ratio (PSRR): 100 dB
- RoHS: Compliant
- Slew Rate: 6 V/µs
- Voltage Gain: 131.6 dB

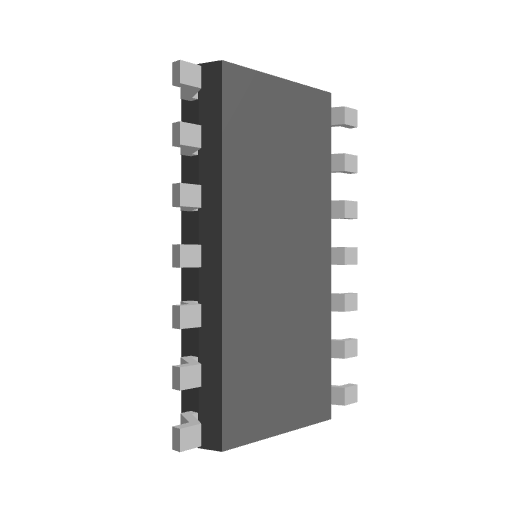

*Image shown is a reference only, please refer to your part number.

Have a question about this product?

Ask our parts team

Analog Devices

LT1679CS#TRPBF

Dual/Quad Low Noise, Rail-to-Rail, Precision Op Amps

Specifications

Physical

Number of Pins

14

Compliance

Lead Free

Lead Free

RoHS

Compliant

Technical

Common Mode Rejection Ratio

98 dB

Dual Supply Voltage

15 V

Gain Bandwidth Product

20 MHz

Input Bias Current

2 nA

Input Offset Voltage (Vos)

100 µV

Max Dual Supply Voltage

18 V

Max Operating Temperature

85 °C

Max Supply Voltage

36 V

Min Dual Supply Voltage

1.35 V

Min Operating Temperature

-40 °C

Min Supply Voltage

3 V

Nominal Gain Bandwidth Product

20 MHz

Number of Channels

4

Number of Circuits

4

Number of Elements

4

Operating Supply Current

2.5 mA

Output Current per Channel

35 mA

Power Supply Rejection Ratio (PSRR)

100 dB

Slew Rate

6 V/µs

Voltage Gain

131.6 dB

Supply Chain

Lifecycle Status

Production

Manufacturer Lifecycle Status

PRODUCTION
